Tour Page 2







The next step is to plug the machine in and turn the main power switch on.  Note the indicator light.

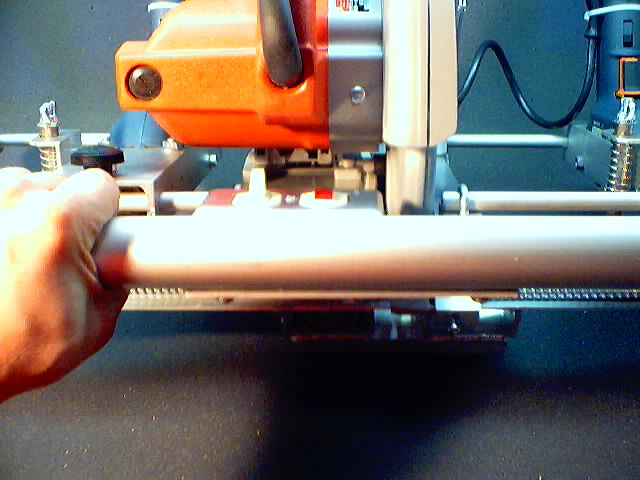

Bring the top frame of the machine down onto the cable to the end of its travel, then swing it back up again.  As you do this the microswitch turns on all cutters on the way down, then off on the way back up.  The cut-off saw cuts the whip to length while the two notching blades notch for the pigtails.
